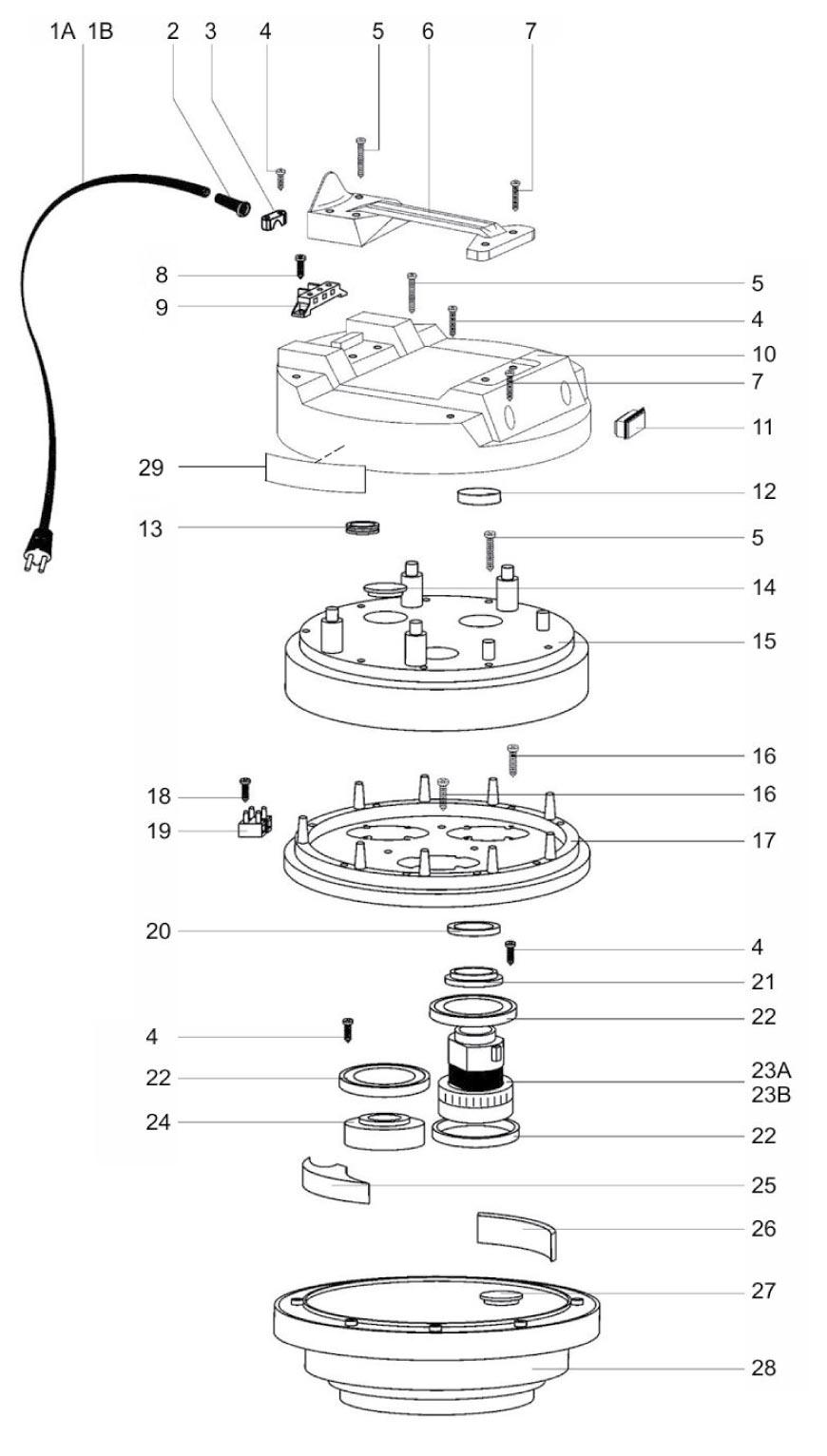

★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★

Parts List

Number Sku Image Name
86137770 0836UL - 7in Antistatic 180MM Wire, Versamatic 14 & 18 New Edition 7in Antistatic 180MM Wire, Versamatic 14 & 18 New Edition #86137770
1 86407660 1918 - Cable for the Versamatic 18 New Edition Cable for the Versamatic 18 New Edition #86407660
2 86407670 1037ES - Black Handle Grip Complete, Windsor Versamatic 1037ES - Black Handle Grip Complete, Windsor Versamatic
3 86407680 1596sw - Black Handle Cover, Windsor Versamatic 1596sw - Black Handle Cover, Windsor Versamatic
4 86142140 1794 - Handle, Windsor Versamatics 1794 - Handle, Windsor Versamatic
5 86407690 10971bg - Basalt Gray Dust Bag Housing, Windsor Versamatic 10971bg - Basalt Gray Dust Bag Housing, Windsor Versamatic
6 86407700 1420sw - Black Grommet, Windsor Versamatic 1420sw - Black Grommet, Windsor Versamatic
7 86407710 1966zg - Zinc Yellow Switch Button, Windsor Versamatic 1966zg - Zinc Yellow Switch Button, Windsor Versamatic
8 86345570 1962 - Windsor Versamatic Spring #86345570 Windsor Versamatic Spring #86345570
9 86145610 1957 ER - Switch, Windsor Versamatic 1957 ER - Switch, Windsor Versamatic
10 86363610 86363610 Switch Holder, Versamatic 14 & 18 New Edition Switch Holder, Versamatic 14 & 18 New Edition #86363610
11 86349910 86349910  Switch Cover, Versamatic 14 & 18 New Edition Switch Cover, Versamatic 14 & 18 New Edition #86349910
12 86407720 1038bg - Basalt Gray Connecting Tube, Windsor Versamatic 1038bg - Basalt Gray Connecting Tube, Windsor Versamatic
13 86407730 1792kg - Karcher Gray Retaining Ring, Windsor Versamatic 1792kg - Karcher Gray Retaining Ring, Windsor Versamatic
14 86372770 1975ER - 115V 3 Wire PC Board, Windsor Versamatic 1975ER - 115V 3 Wire PC Board, Windsor Versamatic
15 86137760 0835UL - 8in Antistatic 205MM Wire, Versamatic 14 & 18 New Edition 8in Antistatic 205MM Wire, Versamatic 14 & 18 New Edition #86137760
16 86142810 1283 UL - Internal Cable Internal Cable #86142810
17 86139110 1030 UL - Cable Clamp 1030 UL - Cable Clamp
18 86145530 1026 - Switch Housing Cover 1026 - Switch Housing Cover
19 86140990 1040 - Dust Bag Lever 1040 - Dust Bag Lever
20 86144640 1041 - Return Spring Return Spring #86144640
21 86143010 1027 - Leaf Spring 1027 - Leaf Spring
22 86140170 1025 - Connecting Rod 1025 - Connecting Rod
23 86139970 1073 - Clamp, Windsor Sensor and Versamatic 1073 - Clamp, Windsor Sensor and Versamatic
24 86143330 1044 - Windsor Versamatic Motor filter 1044 - Windsor Versamatic Motor filter
25 86407740 1534bg - Basalt Gray Exhaust Filter, Windsor Versamatic 1534bg - Basalt Gray Exhaust Filter, Windsor Versamatic
26 86407750 1039bg - Basalt Gray Back Cover, Windsor Versamatic 1039bg - Basalt Gray Back Cover, Windsor Versamatic
27 86138010 Back Cover Seal #86138010 Back Cover Seal #86138010
28 86141890 1061 - Gasket, Windsor Versamatic Gasket, Windsor Versamatic #86141890
29 86407760 1057ZG - Zinc Yellow Latch with Spring and Pin, Windsor Versamatic 1057ZG - Zinc Yellow Latch with Spring and Pin, Windsor Versamatic
30 86407770 1461kg - Karcher Gray Upper Cord Hook, Windsor Versamatic 1461kg - Karcher Gray Upper Cord Hook, Windsor Versamatic
31 86407780 1462kg - Karcher Gray Lower Cord Hook, Windsor Versamatic 1462kg - Karcher Gray Lower Cord Hook, Windsor Versamatic
32 86407790 1783KA - Black/Karcher Gray Extension Tube, Windsor Versamatic 1783KA - Black/Karcher Gray Extension Tube, Windsor Versamatic
33 86142640 1784SB - Hose Complete, Versamatic 14 & 18 New Edition 1784SB - Hose Complete, Versamatic 14 & 18 New Edition
34 86407800 1797BG - Basalt Gray Motor Housing, Windsor Versamatic 1797BG - Basalt Gray Motor Housing, Windsor Versamatic
35 86407810 1521bg - Basalt Gray Right Hand Housing Cover, Windsor Versamatic 1521bg - Basalt Gray Right Hand Housing Cover, Windsor Versamatic
36 86407820 1798kg - Karcher Gray SP Filter Retaining Button, Windsor Versamatic 1798kg - Karcher Gray SP Filter Retaining Button, Windsor Versamatic
37 86142770 1896 - Sound Insulation Sound Insulation #86142770
38 86143090 1553 - Locking Rod 1553 - Locking Rod #86143090
39 86407830 0819kg - Karcher Gray Locking Catch, Windsor Versamatic 0819kg - Karcher Gray Locking Catch, Windsor Versamatic
40 86146420 1887 UL - Vacuum Motor 120V/ 1000W Vacuum Motor 120V/ 1000W #86146420
41 86139400 05117S - Carbon Brush Set Vacuum Motor 05117S - Carbon Brush Set Vacuum Motor
42 86143410 Motor Cover #86143410 1821 UL - Motor Cover #86143410
43 86143340 1411 - Motor Support Motor Support #86143340
44 86146380 1047 - Vacuum Motor Seal 1047 - Vacuum Motor Seal
45 86141570 1545 UL - Contact Holder 3-Wire 1545 UL - Contact Holder 3-Wire
46 86146200 1265 UL - Terminal Block 3-Wire Terminal Block 3-Wire #86146200
47 86140420 Terminal Block Cover  #86140420 Terminal Block Cover #86140420
48 86196290 0101 - Screw C3,9 x 9,5 DIN 7981 0101 - Screw C3,9 x 9,5 DIN 7981
49 86147030 0102 - Screw F 3,9 x 13 DIN 7981 0102 - Screw F 3,9 x 13 DIN 7981
50 86147040 0103- Screw C 3,9 x 16 DIN 7981 0103- Screw C 3,9 x 16 DIN 7981
51 86147070 0111 - Screw AM5 x 30 DIN 7985 Screw AM5 x 30 DIN 7985 86147070
52 86146540 0140 - Washer 4,3 DIN 125 0140 - Washer 4,3 DIN 125
53 86143730 1281 -  PC Board Cover, Versamatic 14 & 18 New Edition PC Board Cover, Versamatic 14 & 18 New Edition #86143730
54 86144830 86144830 Screw, M4 x 10, Sensor S2 HEPA 86144830
