★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★

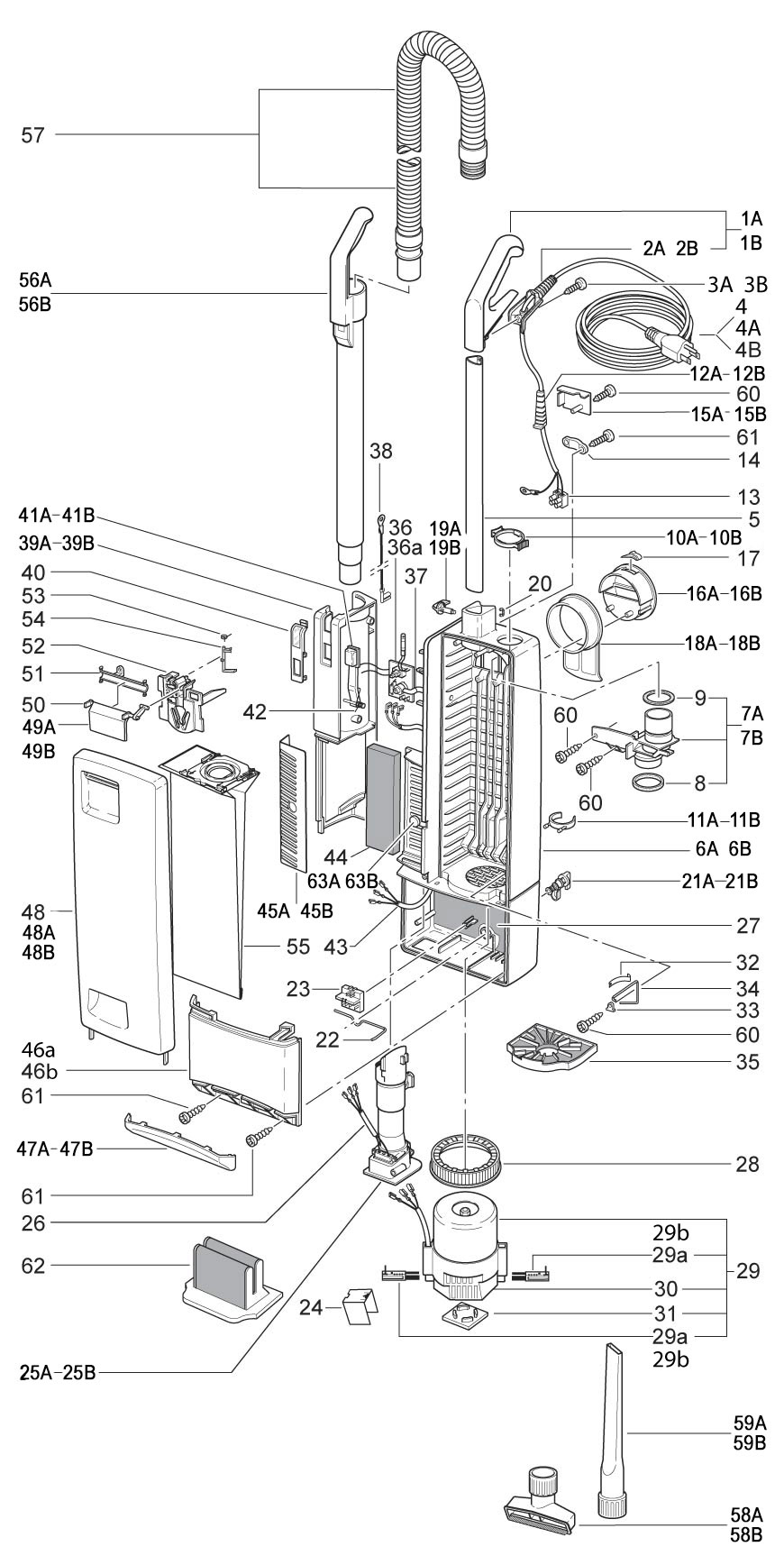

Windsor Versamatic Plus Bag Housing

Black Handle Grip Complete, Windsor Versamatic 86407670 Handle Grip VS #86142050 Black Handle Cover, Windsor Versamatic 86407680 Handle Cover, Windsor Versamatic #86142120 Sensor S2 Screw, M4 x 10 86144830 Cable for the Versamatic 18 New Edition #86407660 Windsor Vacuum Power Cable Cord-Blue 40 ft. Handle, Versamatic Plus #86142150 Versamatic Plus Dust Bag Housing Gray 86408190 Dust Bag Housing #86141070 Versamatic Plus Internal Cover Gray 86408200 VSP Internal Cover 370/470 #86142840 Sensor Vacuum Seal 86144930 Seal #86144900 Gray Retaining Ring 86408080 Retaining Ring #86144620 Black Dust Bag House Clip #86319250 Attachment Clip #86140080 Sensor Cord Grommet 86319140 Sensor Cord Grommet 86141970 Terminal Block #86146170 Cable Clamp #86139110 Windsor Versamatic Plus Brush Strip Cover 86408220 Cover, Windsor Versamatic Plus #86140430 Windsor Versamatic Gray Carrying Handle 86408230 Carrying Handle #86139430 Stop Spring #86145350 Versamatic Plus Gray Cable Hook 86408240 Cable Hook #86139170 Versamatic Plus Gray Handle Catch 86408250 Handle Catch 86142160 Clip, 4 DIN 6799, Windsor Versamatic Plus #86140040 Versamatic Plus Gray Locking Catch 86408260 Locking Latch #86143080 Locking Rod #86143100 Terminal Block 3-Wire #86146200 Terminal Block Cover #86140420 Versamatic Plus Gray Connector 86408270 Connector #86140220 Female Contact Holder #86141590 Sound Insulation #86145170 Vacuum Motor Seal #86146380 Carbon Brush Set Vacuum Motor 86139400 Carbon Brush Set Vacuum Motor 86139400 Vacuum Motor Versamatic Plus VSP #86146410 Motor Cover #86143410 Versamatic Plus Motor Support 86352880 Leaf Spring #86143010 Clamp, Windsor Sensor and Versamatic 86139970 Connecting Rod #86140230 1825 - Windsor Versamatic Plus Motor Filter Circuit Board Windsor Versamatic Plus 86139950 PC Board Cover 86143760 Fitting 86141680 Grounding Wire #86141990 Versamatic Plus Gray Vacuum Tube Cover 86408280 Vacuum Tube Cover #86145370 LENS, BAG LIGHT INDICATOR 86143040 Versamatic Plus Yellow Switch Button 86408290 Switch Button #86145580 Spring 86145220 Internal Cable #86142830 Windsor Versamatic Plus Exhaust Filter 86141370 Versamatic Plus Gray Exhaust Filter 86408300 Exhaust Filter Cover #86141360 Gray Dual Motor Cover for Versamatic Plus 86408310 Versamatic Plus Gray Dust Bag Housing Bumper 86408320 Dust Bag Housing Bumper VSP #86141050 Versamatic Plus Front Cover Seal 86141840 Versamatic Plus Gray Front Cover Complete 86408330 Front Cover Complete #86141750 Versamatic Plus Yellow Cover Release 86408340 Cover Release #86140440 Seal, Release Cover #86144970 Plastic Axle Cover #86143940 Bag Holder CPL #86138040 Sensor Safety Catch Spring #86144760 Safety Catch #86144750 All New Windsor Sensor Replacement Filter Bag- 5300REP Sensor Black Extension Tube 86319200 Extension Tube 86141540 Windsor Sensor Vacuum Hose #86142650 Black Upholstery Nozzle 86319290 Dark Gray Upholstery Tool 86146290 Windsor Vacuum Black Crevice Tool 86319300 Windsor Upright Vacuum Crevice Tool 86140860/86140870 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Screw C 3,9 x 16 DIN 7981 86147040 Screw C 3,9 x 16 DIN 7981 86147040 Screw C 3,9 x 16 DIN 7981 86147040 1875 - Windsor Versamatic Plus Hospital Filter Gray Retaining Button Versamatic Plus 86408350 Retaining Button 86144610 Sensor S2 Screw, M4 x 10 86144830 Cable for the Versamatic 18 New Edition #86407660 Sensor SR Carbon Brush Set 86139390 Sensor SR Carbon Brush Set 86139390 Gray Dual Motor Cover for Versamatic Plus 86408310
Windsor Versamatic Plus
14" Power Head
Windsor Versamatic Plus
18" Power Head
Windsor Versamatic Plus
Tools

Parts List

Number Sku Image Name Price
1a 86407670 Black Handle Grip Complete, Windsor Versamatic 86407670 Handle Grip Complete, Black $22.95
1b 86142050 Black Handle Grip Complete, Windsor Versamatic 86142050 Handle Grip, Gray $28.00
2a 86407680 Handle Cover, Black 86407680 Handle Cover, Black $7.05
2b 86142120 Handle Cover, Gray 86142120 Handle Cover, Gray $7.25
3a 86144830 Sensor S2 Screw, M4 x 10 86144830 Screw, M4 x 10, Sensor S2 HEPA $2.35
3b 86147120 Screw, M 4X10, Windsor Axcess and Flexamatic 86147120 Screw, M 4X10, Windsor Axcess $1.49
4 86135510 1918 - Cable for the Versamatic 18 New Edition Cable for Versamatic, 40 ft. Blue $27.00
4a 86407660 1918 - Cable for the Versamatic 18 New Edition Cable for the Versamatic 18, Yellow $66.00
4b 86407650 Cable for the Versamatic 14 New Edition 86407650 Cable for the Versamatic 14, Yellow $66.00
5 86142150 Handle, Versamatic Plus 86142150 Handle, Versamatic Plus $35.50
6a 86408190 Versamatic Plus Dust Bag Housing Dark Gray 86408190 Dust Bag Housing, Dark Gray $140.00
6b 86141070 Dust Bag Housing, Light Gray 86141070 Dust Bag Housing, Light Gray $160.00
7a 86408200 Versamatic Plus Internal Cover, Dark Gray 86408200 Internal Cover, Dark Gray $24.50
7b 86142840 Versamatic Plus Internal Cover, Dark Gray 86142840 Internal Cover 370/470, Light Gray $24.50
8 86144900 Bag Housing Seal 86144900 Bag Housing Seal $1.70
9 86144930 Internal Cover Seal 86144930 Internal Cover Seal $8.20
10a 86144620 Retaining Ring, Dark Gray 86144620 Retaining Ring, Dark Gray $3.10
10b 86408080 Retaining Ring, Light Gray 86408080 Retaining Ring, Light Gray $19.50
11a 86319250 Dust Bag House Clip, Black 86319250 Dust Bag House Clip, Black $9.55
11b 86140080 Dust Bag Housing Clip, Light Gray 86140080 Dust Bag Housing Clip, Light Gray $4.35
12a 86319140 Black Grommet #86319140 5359SW Cord Grommet, Black $1.50
12b 86141970 Cord Grommet, Light Gray #86141970 Cord Grommet, Light Gray $2.40
13 86146170 Terminal Block 86146170 Terminal Block $19.50
14 86139110 Cable Clamp 86139110 Cable Clamp $1.95
15a 86408220 Brush Strip Cover, Dark Gray 86408220 Brush Strip Cover, Dark Gray $9.45
15b 86140430 Brush Strip Cover, Light Gray 86140430 Brush Strip Cover, Light Gray $6.40
16a 86408230 Carrying Handle, Dark Gray 86408230 Carrying Handle, Dark Gray $17.30
16b 86139430 Carrying Handle, Light Gray 86139430 Carrying Handle, Light Gray $21.50
17 86145350 Stop Spring 86145350 Stop Spring $2.30
18a 86408240 Cable Hook, Dark Gray 86408240 Cable Hook, Dark Gray $16.10
18b 86139170 Cable Hook, Light Gray 86139170 Cable Hook, Light Gray $21.50
19a 86408250 Handle Catch, Gray 86408250 Handle Catch, Gray $21.50
19b 86352680 Handle Catch 86352680 Handle Catch $14.50
20 86140040 Clip, 4 DIN 6799, 86140040 Clip, 4 DIN 6799 $1.49
21a 86408260 Locking Catch, Gray 86408260 Locking Catch, Gray $14.30
21b 86143080 Locking Catch 86143080 Locking Catch $19.00
22 86143100 Locking Rod 86143100 Locking Rod $15.50
23 86146200 Terminal Block 3-Wire 86146200 Terminal Block 3-Wire $28.00
24 86140420 Terminal Block Cover 86140420 Terminal Block Cover $5.80
25a 86408270 Connector, Dark Gray 86408270 Connector, Dark Gray $28.00
25b 86140220 Connector, Light Gray 86140220 Connector, Light Gray $35.00
26 86141590 Female Contact Holder 86141590 Female Contact Holder $26.50
27 86145170 Sound Insulation 86145170 Sound Insulation $9.90
28 86146380 Vacuum Motor Seal 86146380 Vacuum Motor Seal $21.50
29 86146410 Vacuum Motor 86146410 Vacuum Motor, VSP $330.00
29a 86139400 Carbon Brush Set Vacuum Motor, Gold 86139400 Carbon Brush Set Vacuum Motor, Gold $41.50
29b 86139390 Carbon Brush Set Vacuum Motor, Black 86139390 Carbon Brush Set Vacuum Motor, Black $47.50
30 86143410 Motor Cover 86143410 Motor Cover $25.00
31 86352880 Motor Support 86352880 Motor Support $16.50
32 86143010 Leaf Spring 86143010 Leaf Spring $3.10
33 86139970 1073 - Clamp, Windsor Sensor and Versamatic Clamp, Windsor Versamatic $1.90
34 86140230 Connecting Rod 86140230 Connecting Rod $6.65
35 86143430 Windsor Versamatic Plus Motor Filter 86143430 Motor Filter, Versamatic Plus $13.50
36 86143760 1903- PC Board Cover 86143760 PC Board Cover $8.00
36a 86139950 Circuit Board Windsor Versamatic Plus 86139950 Circuit Board $67.50
37 86141680 Fitting, Versamatic Plus 86141680 Fitting, Versamatic Plus $9.25
38 86141990 Grounding Wire 86141990 Grounding Wire $6.90
39a 86146470 1852bg - Vacuum Tube Cover, Gray 86408280 Vacuum Tube Cover $87.00
39b 86408280 1852bg - Vacuum Tube Cover, Gray 86408280 Vacuum Tube Cover, Gray $70.00
40 86143040 Lens, Bag Light Indicator 86143040 Lens, Bag Light Indicator $20.50
41a 86408290 1830zg - Zinc Yellow Switch Button 86408290 Switch Button, Yellow $9.85
41b 86145580 1830zg - Zinc Blue Switch Button 86145580 Switch Button, Blue $9.25
42 86145220 Spring, Versamatic Plus 86145220 Spring, Versamatic Plus $4.05
43 86142830 1834- Internal Cable 86142830 Internal Cable $22.00
44 86141370 1878 - Windsor Versamatic Plus Exhaust Filter 86141370 Exhaust Filter $10.00
45a 86408300 1802bg - Basalt Gray Exhaust Filter Cover 86408300 Exhaust Filter Cover, Dark Gray $4.90
45b 86141360 1802bg - Basalt Gray Exhaust Filter Cover 86141360 Exhaust Filter Cover, Light Gray $19.50
46a 86408310 1853BG - Basalt Gray Dual Motor Cover 86408310 Dual Motor Cover, Dark Gray $40.70
46b 86143480 1853BG - Basalt Gray Dual Motor Cover 86143480 Dual Motor Cover, Light Gray $98.00
47a 86408320 1804bg - Basalt Gray Dust Bag Housing Bumper 86408320 Dust Bag Housing Bumper, Dark Gray $14.45
47b 86141050 1804bg - Basalt Gray Dust Bag Housing Bumper 86141050 Dust Bag Housing Bumper, Light Gray $17.00
48 86408330 1846bg - Basalt Gray Front Cover Complete Basalt Gray Front Cover Complete $83.50
48a 86408310 Front Cover Seal 86408310 Gray Dual Motor Cover $40.70
48b 86141840 5454 - Front Cover Seal Front Cover Complete, Gray $83.50
49a 86408340 86140440 Zinc Yellow Cover Release Cover Release, Yellow $16.00
49b 86140440 Blue Cover Release 86140440 Cover Release, Blue $14.00
50 86144970 6040- Seal, Release Cover Seal, Release Cover $3.60
51 86143940 1819- Plastic Axle Cover Plastic Axle Cover $4.50
52 86138040 1847- Bag Holder CPL Bag Holder CPL $17.50
53 86144760 5091 - Safety Catch Spring Safety Catch Spring $2.70
54 86144750 1817- Safety Catch Safety Catch $5.30
55 5300REP 5300REP Windsor Sensor Bag- Replacement 5300REP Bag Replacement $11.99
56a 86319200 5045sw - Black Extension Tube Black Extension Tube $54.50
56b 86141540 Gray Extension Tube 86141540 Extension Tube, Gray $52.00
57 86142650 5040 HG - Windsor Sensor Hose Windsor Sensor Hose $60.00
58a 86319290 1491sw - Black Upholstery Nozzle Upholstery Nozzle, Black $30.50
58b 86146310 1491sw - Black Upholstery Nozzle Black Upholstery Nozzle $30.50
59a 86319300 Windsor Vacuum Crevice Tool 1092 Crevice Tool, Black $29.00
59b 86140860 / 86140870 Windsor Vacuum Crevice Tool 1092 1092sw - Black Crevice Tool, Windsor Uprights $23.20
60 86147030 Screw F 3,9 x 13 DIN 7981 86147030 Screw F 3,9 x 13 DIN 7981 $1.05
61 86147040 Screw C 3,9 x 16 DIN 7981 Screw C 3,9 x 16 DIN 7981 $1.99
62 86142690 1875 - Windsor Versamatic Plus Hospital Filter Windsor Versamatic Plus Hospital Filter $25.99
63a 86144610 1884kg - Karcher Gray Retaining Button Karcher Gray Retaining Button $9.25
63b 86408350 1884kg - Karcher Gray Retaining Button Retaining Button, Gray $10.95
