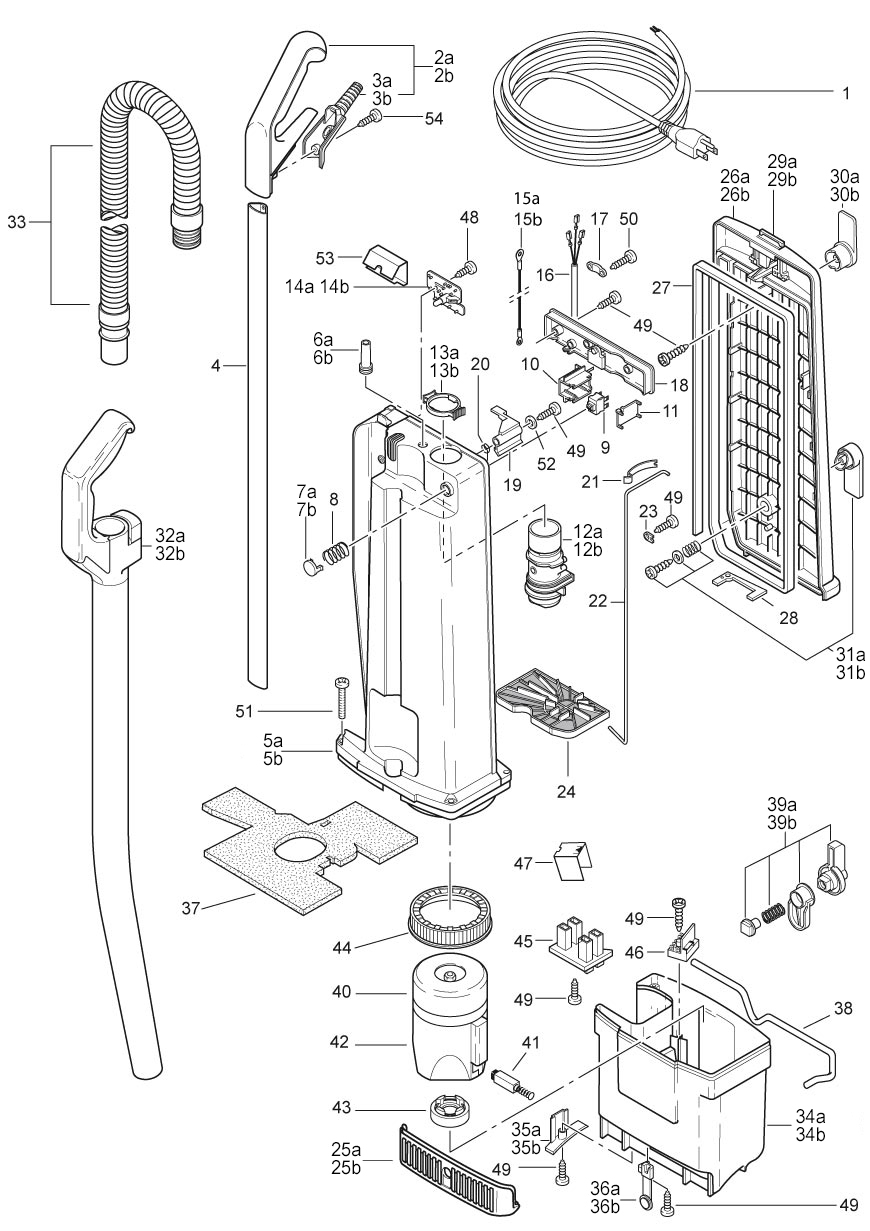

★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★

Parts List

Number Sku Image Name
1 86407660 Cable 86407660 Cable
2a 86407670 Handle Grip Complete, Black 86407670 Handle Grip, Black
2b 86142050 Handle Grip, Gray 86142050 Handle Grip, Gray
3a 86407680 Handle Cover, Black 86407680 Handle Cover, Black
3b 86142120 Handle Cover, Gray 86142120 Handle Cover, Gray 86142120
4 86142140 Handle, Windsor Versamatic 86142140 Handle, Windsor Versamatic
5a 86407690 Dust Bag Housing, Dark Gray 86407690 Dust Bag Housing, Dark Gray
5b 86363600 Dust Bag Housing, Light Gray 86363600 Dust Bag Housing, Light Gray
6a 86407700 Grommet, Black 86407700 Grommet, Black
6b 86141950 Grommet, Gray 86141950 Grommet, Gray 86141950
7a 86407710 Switch Button, Yellow 86407710 Switch Button, Yellow 86407710
7b 86349900 Switch Button, Gray 86349900 Switch Button, Gray
8 86345570 Windsor Versamatic Spring #86345570 Spring, Versamatic
9 86145610 1957 ER - Switch, Windsor Versamatic 86145610 Switch, Versamatic
10 86363610 Switch Holder 86363610 Switch Holder
11 86349910 Switch Cover 86349910 Switch Cover
12a 86407720 Connecting Tube, Dark Gray 86407720 Connecting Tube, Dark Gray 86407720
12b 86363620 Connecting Tube, Light Gray 86363620 Connecting Tube, Light Gray
13a 86407730 Retaining Ring, Dark Gray 86407730 Retaining Ring, Dark Gray 86407730
13b 86407730 Retaining Ring, Light Gray 86144600 Retaining Ring, Light Gray
14a 86372770 Printed Circuit Board 86372770 Printed Circuit Board
14b 86372770 Printed Circuit Board 86372770 Printed Circuit Board
15a 86137760 8in Antistatic 205MM Wire 86137760 8in Antistatic 205MM Wire 86137760
15b 86137770 7in Antistatic 180MM Wire 86137770 7in Antistatic 180MM Wire
16 86142810 Internal Cable 86142810 Internal Cable 86142810
17 86139110 Cable Clamp 86139110 Cable Clamp 86139110
18 86145530 Switch Housing Cover 86145530 Switch Housing Cover 86145530
19 86140990 Dust Bag Lever 86140990 Dust Bag Lever 86140990
20 86144640 Return Spring 86144640 Return Spring 86144640
21 86143010 Leaf Spring 86143010 Leaf Spring 86143010
22 86140170 Connecting Rod 86140170 Connecting Rod 86140170
23 86139970 Clamp, Windsor Sensor and Versamatic 86139970 Clamp
24 86143330 Motor filter 86143330 Motor filter 86143330
25a 86407740 Exhaust Filter, Dark Gray 86407740 Exhaust Filter, Dark Gray 86407740
25b 86141600 Exhaust Filter, Light Gray 86141600 Exhaust Filter, Light Gray
26a 86363630 Back Cover, Dark Gray 86407750 Back Cover, Dark Gray 86407750
26b 86407750 Back Cover, Dark Gray 86363630 Back Cover, Light Gray
27 86138010 Back Cover Seal 86138010 Back Cover Seal 86138010
28 86141890 Gasket 86141890 Gasket 86141890
29a 86407760 Latch with Spring and Pin, Yellow 86407760 Latch with Spring and Pin, Yellow
29b 86407760 Latch with Spring and Pin, Gray 86363640 Latch with Spring and Pin, Gray 86363640
30a 86407770 Upper Cord Hook, Dark Gray 86407770 Upper Cord Hook, Dark Gray
30b 86363650 Upper Cord Hook, Light Gray 86363650 Upper Cord Hook, Light Gray
31a 86407780 Lower Cord Hook, Dark Gray 86407780 Lower Cord Hook, Dark Gray
31b 86407780 Lower Cord Hook, Light Gray 86363660 Lower Cord Hook, Light Gray
32a 86407790 Extension Tube, Black 86407790 Extension Tube, Black
32b 86407790 Extension Tube, Gray 86141530 Extension Tube, Gray
33 86142640 Hose Complete 86142640 Hose Complete
34a 86407800 Motor Housing, Gray 86407800 Motor Housing, Dark Gray
34b 86363670 Motor Housing, Light Gray 86363670 Motor Housing, Light Gray
35a 86407810 Right Hand Housing Cover, Dark Gray 86407810 Right Hand Housing Cover, Dark Gray
35b 86142710 Right Hand Housing Cover, Dark Gray 86142710 Right Hand Housing Cover, Dark Gray
36a 86407820 1798kg - Karcher Gray SP Filter Retaining Button, Windsor Versamatic SP Filter Retaining Button, Dark Gray
36b 86141610 SP Filter Retaining Button, Light Gray 86141610 SP Filter Retaining Button, Light Gray
37 86142770 1896 - Sound Insulation Sound Insulation
38 86143090 Locking Rod 86143090 Locking Rod
39a 86407830 Locking Catch, Dark Gray 86407830 Locking Catch, Dark Gray
39b 86143070 Locking Catch, Light Gray 86143070 Locking Catch, Light Gray
40 86146420 Vacuum Motor 120V/ 1000W 86146420 Vacuum Motor 120V/ 1000W
41 86139400 Carbon Brush Set Vacuum Motor 86139400 Carbon Brush Set Vacuum Motor
42 86143410 Motor Cover 86143410 Motor Cover
43 86143340 Motor Support 86143340 Motor Support
44 86146380 Vacuum Motor Seal 86146380 Vacuum Motor Seal
45 86141570 Contact Holder 3-Wire 86141570 Contact Holder 3-Wire
46 86146200 Terminal Block 3-Wire 86146200 Terminal Block 3-Wire
47 86140420 Terminal Block Cover 86140420 Terminal Block Cover
48 86196290 Screw C3,9 x 9,5 DIN 7981 86196290 Screw C3,9 x 9,5 DIN 7981 86196290
49 86147030 Screw F 3,9 x 13 DIN 7981 86147030 Screw F 3,9 x 13 DIN 7981 86147030
50 86147040 Screw C 3,9 x 16 DIN 7981 86147040 Screw C 3,9 x 16 DIN 7981 86147040
51 86147070 0111 - Screw AM5 x 30 DIN 7985 Screw AM5 x 30 DIN 7985 86147070
52 86146540 Washer 4,3 DIN 125 86146540 Washer 4,3 DIN 125
53 86143730 PC Board Cover 86143730 PC Board Cover 86143730
54 86144830 86144830 Screw, M4 x 10, Sensor S2 HEPA 86144830
