★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★

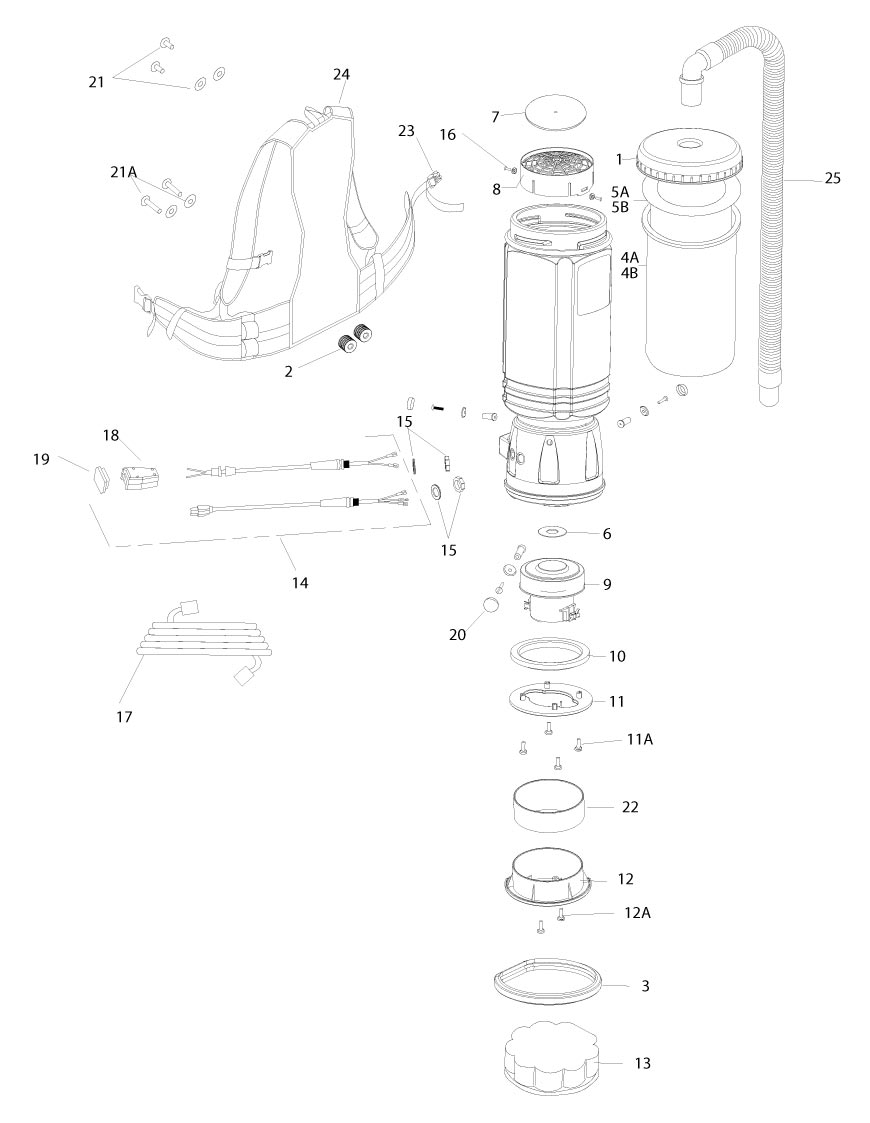

Windsor VacPac 6/10 Qt. Bag Housing


Windsor Vacuum Pac Cap, Black #86198740 Back Plate Spacer for Windsor Vac Pac #86199090 Windsor Vac Pac Bumper VP6/VP10  #86198730 Windsor Vac Pac Cloth Bag Liner VP10 #86198840 Windsor Vac Pac VP6 Cloth Bag  #86198900 Windsor Vac Pac VP10 Filter Bag  #86198850 Windsor Vac Pac VP6 Filter Bags #86198910 Gasket, 5.0 x 2.0 x .50, Windsor Compass #86237870 Windsor Vac Pac Motor Filter #86198870 Windsor Vac Pac Housing Filter #86198880 Windsor Vac Pac Vacuum Motor 115V #86199000 Windsor Vac Pac Motor Seal #86199010 Windsor Vac Pac Ring, Motor Comp W/ Screws #86199050 Motor Ring Screws (pkg of 4) #86199070 Air Diffuser W/Screws Windsor Vac Pac #86198790 Air Diffuser Screws (pkg of 2) Vac Pac #86199080 Air/Sound Diffuser Filter Windsor Vac Pac #86198890 Windsor Vac Pac Switch/Cord Kit #86198950 Nut for Strain Relief w/ Washer Vac Pac #86199020 Nut for Strain Relief w/ Washer Vac Pac #86199020 Vac Pac Filter Housing Fastener Set #86198830 Windsor Vac Pac Cord assembly 50 foot extension #86198750 Vac Pac Switch Box w/ screws #86225100 Switch for Windsor Vac Pac #86199120 Motor Mount Fastener Set Vac Pac #86198800 Vac Pac Back Plate Fastener Set- Top #86198810 Vac Pac Back Plate Fastener Set- Bottom #86198820 Vac Pac Foam Diffuser #86198930 Waist Belt Latch Windsor Vac Pac #86198990 Windsor Vac Pac Harness Assembly VP6/VP10 #86312540 Windsor Vac Pac Hose Assembly #86198940

Parts List

Number Sku Image Name
1 86198740 6800 BLK- Windsor Vacuum Pac Cap, Black 6800 BLK- Windsor Vacuum Pac Cap, Black
2 86199090 68083- Back Plate Spacer for Windsor Vac Pac 68083- Back Plate Spacer for Windsor Vac Pac
3 86198730 68003- Windsor Vac Pac Bumper VP6/VP10 68003- Windsor Vac Pac Bumper VP6/VP10
4A 86198840 68004 - Windsor Vac Pac Cloth Bag Liner VP10 68004 - Windsor Vac Pac Cloth Bag Liner VP10
4B 86198900 68074- Windsor Vac Pac VP6 Cloth Bag 68074- Windsor Vac Pac VP6 Cloth Bag
5A 86198850 68005- Windsor Vac Pac VP10 Filter Bag 68005- Windsor Vac Pac VP10 Filter Bag
5A 86198910 68075- Windsor Vac Pac VP6 Filter Bags 68075- Windsor Vac Pac VP6 Filter Bags
6 86237870 35270 - Gasket, 5.0 x 2.0 x .50, Windsor Compass 86237870 35270 - Gasket, 5.0 x 2.0 x .50, Windsor Compass
7 86198870 68007- Windsor Vac Pac Motor Filter 68007- Windsor Vac Pac Motor Filter
8 86198880 68008- Windsor Vac Pac Housing Filter 68008- Windsor Vac Pac Housing Filter
9 86199000 68009- Windsor Vac Pac Vacuum Motor 115V 68009- Windsor Vac Pac Vacuum Motor 115V
10 86199010 68010- Windsor Vac Pac Motor Seal 68010- Windsor Vac Pac Motor Seal
11 86199050 68011- Windsor Vac Pac Ring, Motor Comp W/ Screws 68011- Windsor Vac Pac Ring, Motor Comp W/ Screws
11A 86199070 68076- Motor Ring Screws (pkg of 4) 68076- Motor Ring Screws (pkg of 4)
12 86198790 68012- Air Diffuser W/Screws Windsor Vac Pac 68012- Air Diffuser W/Screws Windsor Vac Pac
12A 86199080 68077- Air Diffuser Screws (pkg of 2) Vac Pac 68077- Air Diffuser Screws (pkg of 2) Vac Pac
13 86198890 68013- Air/Sound Diffuser Filter Windsor Vac Pac 68013- Air/Sound Diffuser Filter Windsor Vac Pac
14 86198950 47391- Windsor Vac Pac Switch/Cord Kit (Without Box) 47391- Windsor Vac Pac Switch/Cord Kit (Without Box)
15 86199020 68015- Nut for Strain Relief w/ Washer Vac Pac 68015- Nut for Strain Relief w/ Washer Vac Pac
16 86198830 68082- Vac Pac Filter Housing Fastener Set 68082- Vac Pac Filter Housing Fastener Set
17 86198750 68017- Windsor Vac Pac Cord assembly 50 foot extension 68017- Windsor Vac Pac Cord assembly 50 foot extension
18 86225100 72177- Vac Pac Switch Box w/ screws 72177- Vac Pac Switch Box w/ screws
19 86199120 68019- Switch for Windsor Vac Pac 68019- Switch for Windsor Vac Pac
20 86198800 68020- Motor Mount Fastener Set Vac Pac 68020- Motor Mount Fastener Set Vac Pac
21 86198810 68030- Vac Pac Back Plate Fastener Set- Top 68030- Vac Pac Back Plate Fastener Set- Top
21A 86198820 68081- Vac Pac Back Plate Fastener Set- Bottom 68081- Vac Pac Back Plate Fastener Set- Bottom
22 86198930 68092- Vac Pac Foam Diffuser 68092- Vac Pac Foam Diffuser
23 86198990 68054- Waist Belt Latch Windsor Vac Pac 68054- Waist Belt Latch Windsor Vac Pac
24 86312540 Windsor Vac Pac Harness Assembly VP6/VP10 Windsor Vac Pac Harness Assembly VP6/VP10
25 86198940 68066- Windsor Vac Pac Hose Assembly 68066- Windsor Vac Pac Hose Assembly
