★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★

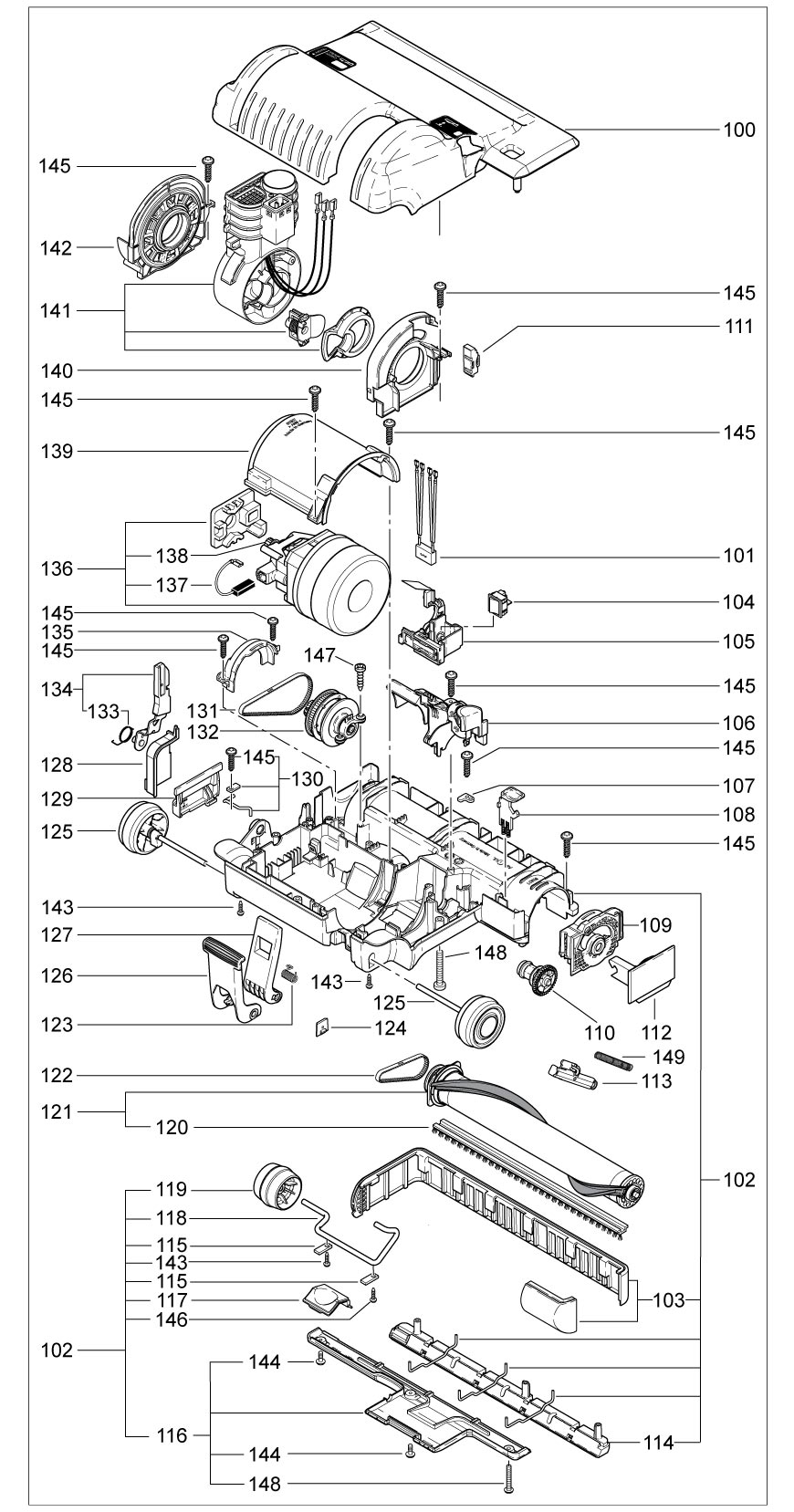

Windsor Sensor S2 14" Power Head

14 Inch Power Head Cover, Sensor S2 HEPA #86397710 Suppressor Kit, Sensor S2 HEPA #86397260 14 Inch Chassis, Sensor S2 HEPA #86397660 14 Inch Chassis, Sensor S2 HEPA #86397660 Bumper, Sensor S2 HEPA #86397670 Switch, Sensor S2 HEPA 86397390 Switching Unit, Sensor S2 HEPA #86397480 Air Channel Cover, Sensor S2 HEPA #86397470 Clamp #86140010 Brush Roller Release, Sensor S2 HEPA #86397290 RH Bearing Block, Sensor S2 HEPA #86397340 Position Cams, Sensor S2 HEPA #86397510 Thrust Member #86146220 Brush Strip Cover, Sensor S2 HEPA #86397350 Thrust Member #86146230 Front Bottom Plate, Sensor S2 HEPA #86397690 Axle Clamp, Pile Adjustment Axle #86137920 Axle Clamp, Pile Adjustment Axle #86137920 Access DoRear Bottom Plate, Sensor S2 HEPA #86397680or Complete, Yellow #86400150 Access Door Complete, Yellow #86400150 Pile Adjustment Axle SENSOR #86143850 Pile Adjustment Wheel SENSOR #86143920 14 in Red Brush Strip, Heavy Duty #86142530 14 Inch Brush Roller, Sensor S2 HEPA #86397700 Belt 219 3M HTDII-6 #86005000 Spring, Sensor S2 HEPA #86397460 Black Rubbing Plate, Sensor S2 HEPA #86320320 Axle and Wheel, Sensor S2 HEPA #86397280 Axle and Wheel, Sensor S2 HEPA #86397280 Foot Pedal, Sensor S2 HEPA #86397440 Catch Pedal, Sensor S2 HEPA #86397450 Covering Cap, Sensor S2 HEPA #86397270 Power Switch Button, Sensor S2 HEPA #86397360 Switch Rod, Sensor S2 HEPA #86397490 Windsor Sensor SR Belt #86138230 Sensor, Sensor S2 HEPA #86397520 Support Lever Spring #86145460 Support Lever with Spring, Sensor S2 HEPA #86397400 LH Bearing Block, Sensor S2 HEPA #86397330 120V Brush Motor, Sensor S2 HEPA #86397370 Carbon Brush Set Vacuum Motor #86139400 Sensor Motor Pulley #86143580 Motor Cover, Sensor S2 HEPA #86397430 RH Swivel Support, Sensor S2 HEPA #86397420 Swivel Neck Complete 3 Wire, Sensor S2 HEPA #86397380 LH Swivel Support, Sensor S2 HEPA #86397410 Screw F 3,9 x 13 DIN 7981 #86147030 Screw F 3,9 x 13 DIN 7981 #86147030 Screw F 3,9 x 13 DIN 7981 #86147030 Screw, M4X12 MM W/Washer 86144850 Screw, M4X12 MM W/Washer 86144850 SCR, 4X16-T20 STS #86144780 SCR, 4X16-T20 STS #86144780 SCR, 4X16-T20 STS #86144780 SCR, 4X16-T20 STS #86144780 SCR, 4X16-T20 STS #86144780 SCR, 4X16-T20 STS #86144780 SCR, 4X16-T20 STS #86144780 SCR, 4X16-T20 STS #86144780 SCR, 4X16-T20 STS #86144780 SCR, 4X16-T20 STS #86144780 Screw, AM4 x 16, Sensor S2 HEPA 86397540 Screw, 3.9 x 25, Sensor S2 HEPA #86397550 Screw M4 X 30 #86147170 Screw M4 X 30 #86147170 Spring #86145250
Windsor Sensor S2
Bag Housing
Windsor Sensor S2
12" Power Head

Parts List

Number Sku Image Name Price
100 86397710 sensor s 2 14 power head cover 50431BGWI - 14 Inch Power Head Cover, Sensor S2 HEPA $31.80
101 86397260 1013WI - Suppressor Kit, Sensor S2 HEPA 86397260 Suppressor Kit, Sensor S2 HEPA #86397260 $13.50
102 86397660 #86397660 14 inch Chassis 14 Inch Chassis, Sensor S2 HEPA #86397660 $60.95
103 86397670 Part #8.639-767.0 Bumper Bumper, Sensor S2 HEPA #86397670 $16.50
104 86397390 86397390 Switch, Sensor S2 HEPA 86397390 $9.85
105 86397480 50443UL - Switching Unit, Sensor S2 HEPA 50443UL - Switching Unit, Sensor S2 HEPA $16.50
106 86397470 #86397470 Air Channel Cover Air Channel Cover, Sensor S2 HEPA #86397470 $13.80
107 86140010 2856 - Clamp 2856 - Clamp $5.10
108 86397290 #86397290 Brush Roller Release Brush Roller Release, Sensor S2 HEPA #86397290 $5.15
109 86397340 Part #8.639-734.0 RH Bearing Block RH Bearing Block, Sensor S2 HEPA #86397340 $6.65
110 86397510 86397510 Position Cams Position Cams, Sensor S2 HEPA #86397510 $4.35
111 86146220 2833 - Thrust Member 2833 - Thrust Member $19.50
112 86397350 #Part# 8.639-735.0 Brush Strip Cover Brush Strip Cover, Sensor S2 HEPA #86397350 $8.15
113 86146230 2834 - Thrust Member 2834 - Thrust Member $24.50
114 86397690 86397690 Front Bottom Plate Front Bottom Plate, Sensor S2 HEPA #86397690 $13.00
115 86137920 2849 - Axle Clamp, Pile Adjustment Axle 2849 - Axle Clamp, Pile Adjustment Axle $5.10
116 86397680 Part# 8.639-768.0 Rear Bottom Plate 50311gsER - Rear Bottom Plate, Sensor S2 HEPA $7.90
117 86400150 2868ZG - Access Door Complete, Sensor S2 HEPA 2868ZG - Access Door Complete, Sensor S2 HEPA $9.10
118 86143850 2861 - Pile Ajustment Axle SENSOR 2861 - Pile Ajustment Axle SENSOR $20.00
119 86143920 5174 HG - Pile Adjustment Wheel SENSOR 5174 HG - Pile Adjustment Wheel SENSOR $24.50
120 86002440 2046 - Brush strip- Windsor Versamatic 14 2046 - Brush strip- Windsor Versamatic 14 $13.00
121 86397700 50471WI - 14 Inch Brush Roller, Sensor S2 HEPA 50471WI - 14 Inch Brush Roller, Sensor S2 HEPA $48.00
122 86005000 5110 - Belt 219 3M HTDII-6 5110 - Belt 219 3M HTDII-6 $19.50
123 86397460 Part # 8.639-746.0 Spring Spring, Sensor S2 HEPA #86397460 $3.95
124 86320320 2869sw - Black Rubbing Plate, Sensor S2 HEPA Black Rubbing Plate, Sensor S2 HEPA #86320320 $7.20
125 86397280 Part #8.639-728.0 Axle and Wheel 50348WI - Axle and Wheel, Sensor S2 HEPA $12.50
126 86397440 Part #8.639-744.0 Foot Pedal Foot Pedal, Sensor S2 HEPA #86397440 $4.40
127 86397450 Part #8.639-745.0 Catch Pedal Catch Pedal, Sensor S2 HEPA #86397450 $6.15
128 86397270 86397270 Covering Cap Covering Cap, Sensor S2 HEPA #86397270 $4.40
129 86397360 Part# 8.639-736.0 Power Switch Button 50306zg - Power Switch Button, Sensor S2 HEPA $8.05
130 86397490 #86397490 Switch Rod 50371ER - Switch Rod, Sensor S2 HEPA #86397490 $5.70
131 86138230 5379 Windsor Sensor SR Belt 5379 Windsor Sensor SR Belt $21.50
132 86397520 Part# 8.639-752.0 Sensor Sensor, Sensor S2 HEPA #86397520 $38.00
133 86145460 5107 - Support Lever Spring 5107 - Support Lever Spring $1.99
134 86397400 #86397400 Support Lever with Spring Support Lever with Spring, Sensor S2 HEPA #86397400 $9.90
135 86397330 Part #8.639-733.0 LH Bearing Block LH Bearing Block, Sensor S2 HEPA #86397330 $7.85
136 86397370 #86397370 120v Brush Motor Sensor 120V Brush Motor, Sensor S2 HEPA #86397370 $99.00
137 86139400 05117S - Carbon Brush Set Vacuum Motor 05117S - Carbon Brush Set Vacuum Motor $41.50
138 86143580 5117 Sensor Motor Pulley 5117 Sensor Motor Pulley $12.50
139 86397430 86397430 Motor Cover 50441UL - Motor Cover, Sensor S2 HEPA #86397430 $12.65
140 86397420 86397430 RH Swivel Support RH Swivel Support, Sensor S2 HEPA 86397420 $12.20
141 86397380 86397380 Swivel Neck Complete 3 Wire Swivel Neck Complete 3 Wire, Sensor S2 HEPA #86397380 $28.00
142 86397410 86397410 LH Swivel Support LH Swivel Support, Sensor S2 HEPA #86397410 $16.05
143 86147030 0102 - Screw F 3,9 x 13 DIN 7981 0102 - Screw F 3,9 x 13 DIN 7981 $1.05
144 86144850 0197 - Screw,M4X12 MM W/Washer 0197 - Screw,M4X12 MM W/Washer $1.79
145 86144780 01016 ER- SCR, 4X16-T20 STS 01016 ER- SCR, 4X16-T20 STS $9.10
146 86397540 86397540 01010ER - Screw, AM4 x 16, Sensor S2 HEPA $1.49
147 86397550 86397550 0104ER - Screw, 3.9 x 25, Sensor S2 HEPA $1.49
148 86147170 0176 - Screw M4 X 30 0176 - Screw M4 X 30 $1.99
149 86145250 2867 - Spring 2867 - Spring $9.25
